The direction-of-arrival plot shows the arrival angles of the different ray-paths including their contributions to the received power in [dBm] between the selected transmitter and the selected receiver. The direction-of-arrival plot can be presented either in the azimuth or in the elevation plane for either the receiver or the transmitter location. If the line-of-sight path exists, its arrival component is highlighted.

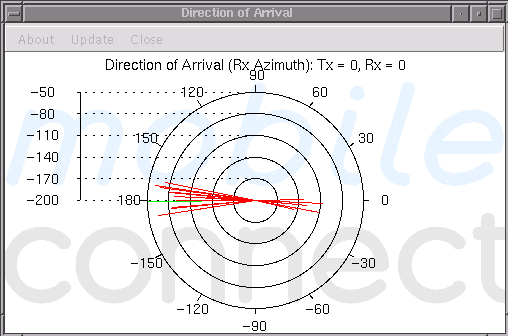

Example of a direction-of-arrival plot in azimuth plane:

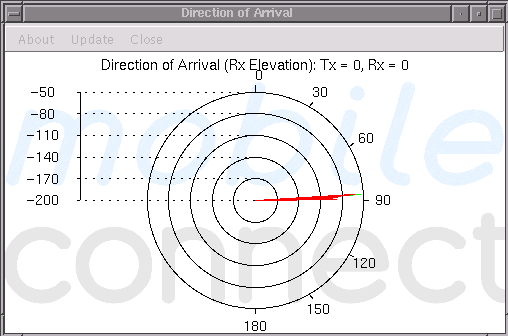

Example of a direction-of-arrival plot in elevation plane:
More information and the possibility to update or export the plot can be accessed through the [Update] menu entry of the window, which presents, for instance, a dialog like:
See the plot setup for a general description of the settings available through the [Plot Setup] button. See the PostScript setup for a general description of the settings available through the [PostScript Setup] button.
